118

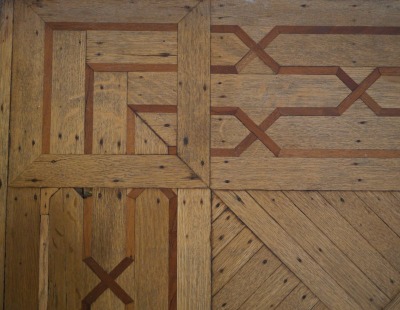

Clinton Hill Historic District 1905

Mahogany strips are 1/2". Inner bands are 2" wide. Making the pattern width 8" wide. Repeat on border is 12". Inner field is 1-1/2" slats in 12" fingerblock.

X Crossovers

118
Clinton Hill Historic District 1905

Mahogany strips are 1/2". Inner bands are 2" wide. Making the pattern width 8" wide. Repeat on border is 12". Inner field is 1-1/2" slats in 12" fingerblock.

Mahogany strips are 1/2". Inner bands are 2" wide. Making the pattern width 8" wide. Repeat on border is 12". Inner field is 1-1/2" slats in 12" fingerblock.

Rhombus Crossover

216

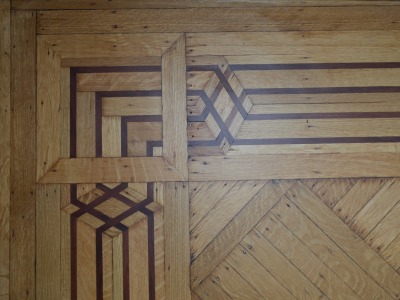

Crown Heights North II c1907

Mahogany bands are 1/2" with 1-1/2" oak between. Oak that fills the rhombus cut is 3/4". That gives a border width of 8". Surrounding is 2" oak. Inner field is diagonal fingerblock with 1-1/2" slats in a 10-1/2" square. The floor had a wax finish.

Mahogany bands are 1/2" with 1-1/2" oak between. Oak that fills the rhombus cut is 3/4". That gives a border width of 8". Surrounding is 2" oak. Inner field is diagonal fingerblock with 1-1/2" slats in a 10-1/2" square. The floor had a wax finish.

22

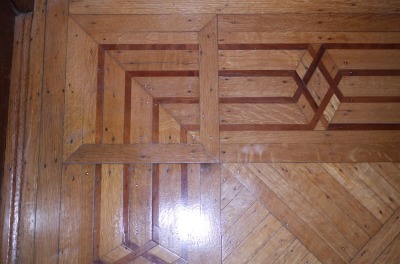

Lefferts Manor 1909

Has lots of 30°/60° angles. They should have been able to meld in the corner banding with the side banding and not had a separate corner block.

Has lots of 30°/60° angles. They should have been able to meld in the corner banding with the side banding and not had a separate corner block.

93

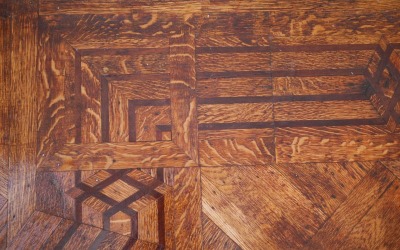

Crown Heights South 1913

Four twisted ribbons. Appears to be the same as the previous one. Dark bands are 1/2" wide. Spacing between them is 1-1/2". With border bands of 3/4", you get a inner border width of 8", or 12" with the surrounding strips. Inner field is diagonal fingerblock with 2" slats in 12" squares.

Four twisted ribbons. Appears to be the same as the previous one. Dark bands are 1/2" wide. Spacing between them is 1-1/2". With border bands of 3/4", you get a inner border width of 8", or 12" with the surrounding strips. Inner field is diagonal fingerblock with 2" slats in 12" squares.

Box Crossover

41

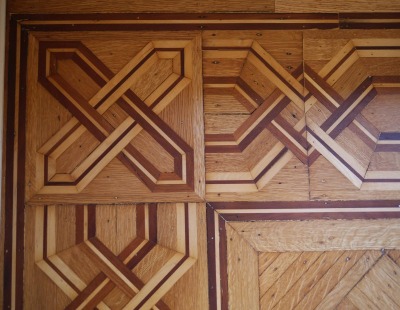

Prospect Park South 1915

Has lots of 67.5° angles and an irregular trapezoid. It would have been very hard to make. This appears as #155 in the Boughton & Linville 1892 catalog on Page 10. Though the ribbon colors are reversed. Corner block is 12". Outer oak strip is 3/4". Inner band is 1/4". Outer bands are 9/16".

Has lots of 67.5° angles and an irregular trapezoid. It would have been very hard to make. This appears as #155 in the Boughton & Linville 1892 catalog on Page 10. Though the ribbon colors are reversed. Corner block is 12". Outer oak strip is 3/4". Inner band is 1/4". Outer bands are 9/16".
