Ribbons Twisted Around A Pipe
Contents to Sections Below:
Square Wave (Meander) Ribbon
135
![Click image for full-size image (2336 × 1648 pixels). Floor border: P135](images/P135.jpg)

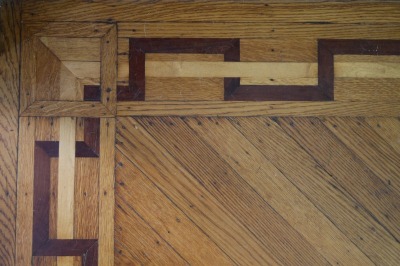

West Midwood 1908-11
This pattern lends itself to nice corners without using a corner block. Maple and mahogany strips are 1" wide. Inner strip is 1/2" wide. Pattern border is then 4" wide. Distance inside wave is 5", making a repeat 12". Surrounding are 1" oak strips. Inner field is 2" strips laid diagonally.
169
![Click image for full-size image (2288 × 1432 pixels). Floor border: P169](images/P169.jpg)
Fiske Terrace 1908
The corner is wrong here. It may be a poor repair job. Maple pipe and cherry ribbon are 1" wide. Oak rectangles are 1/2" and 1-1/2" × 5". Surrounding is 1" oak, 1/2" walnut, 2" oak. Inner field is 2" slats laid diagonally.
Horizontal Ribbon
A horizontal pipe calculation spreadsheet can has input for all the borders below.
64
![Click image for full-size image (2112 × 1432 pixels). Floor border: P064](images/P064.jpg)

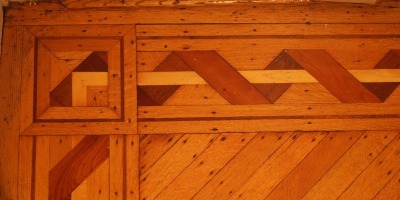

Ditmas Park 1904
Overall pattern width is 4". Maple pipe is 1". Field is diagonal slats that are 1-3/4" wide. They did a nice job getting the ribbon to go through the corner.
74
![Click image for full-size image (2160 × 1088 pixels). Floor border: P074](images/P074.jpg)
West Midwood 1905
This was in a hall. Overall pattern width is 4". Maple pipe is 1". Field is diagonal slats that are 2" wide.
57
![Click image for full-size image (2256 × 1672 pixels). Floor border: P057](images/P057.jpg)
Prospect Lefferts Gardens 1913
Walnut appears to be the dark wood. Walnut band is 1-1/2" wide. Mahogany band is 2-1/8" wide. Pipe is narrower in this one; only 1" wide within a 4" wide pattern. I don't like that the ribbon width changes, depending on which side is shown.
140
![Click image for full-size image (2336 × 1600 pixels). Floor border: P140](images/P140.jpg)

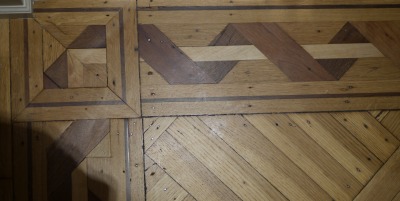

Lefferts Manor 1910
Overall pattern width is 4". Maple pipe is 1". Surrounding is 7/8" maple and 1/4" mahogany. Inner field is 2" strips in 12" fingerblock.
273
![Click image for full-size image (2336 × 1712 pixels). Floor border: P273](images/P273.jpg)

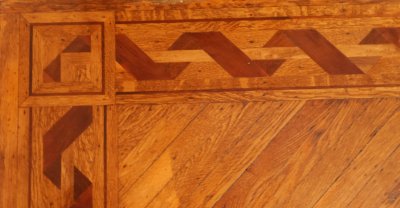

West Midwood circa 1910
215
![Click image for full-size image (2272 × 1680 pixels). Floor border: P215](images/P215.jpg)

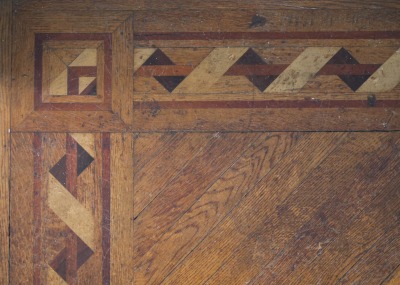

West Midwood Year?
This was in a small room that you passed through from the foyer to the main room. Ribbon pattern is 3" wide. Mahogany pipe is about 11/16" wide. Surrounding is 1/2" oak, 1/2" mahogany, and 1-1/2" oak. Inner field is 2" slats laid diagonally. Corner block is missing two small triangles of oak.
183
![Click image for full-size image (2336 × 1568 pixels). Floor border: P183](images/P183.jpg)

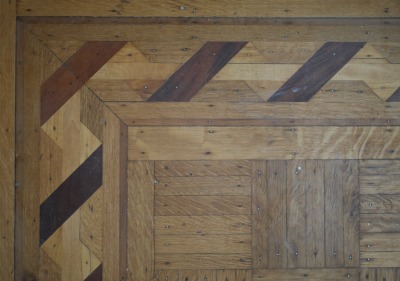

Stuyvesant Heights 1892
This is the corner they started the border from. Note the change in ribbon wood from walnut to mahogany in the corner. One corner did have a corner block, but it wasn't the right one. Being a hall the fingerblock is small. No measurements taken, but my guess is the overall pattern border is the usual 4". First surrounding strip is 1-1/8 oak", then 1/2" mahogany, then 2" oak. Fingerblock is laid straight in 7" blocks with 6 varying width strips.
115
![Click image for full-size image (2336 × 1744 pixels). Floor border: P115](images/P115.jpg)

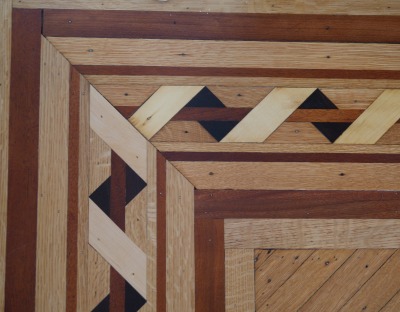

Prospect Park South Historic District 1903
This is an example of how not to do a corner. Pattern border is 3" wide, surrounded by 1/2" oak, 1/2" mahogany, then 1-1/2" oak, etc. Center pipe is 3/4". Repeat is 5-7/8": 2-3/8" side of parallelogram, 3-1/2" bottom of trapezoid. Inner field is 1-1/2" slats diagonally.
156
![Click image for full-size image (2336 × 1752 pixels). Floor border: P156](images/P156.jpg)

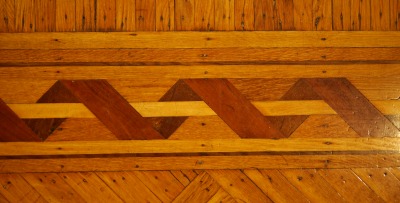

Crown Heights North Historic District II 1909
243
![Click image for full-size image (2336 × 1608 pixels). Floor border: P243](images/P243.jpg)

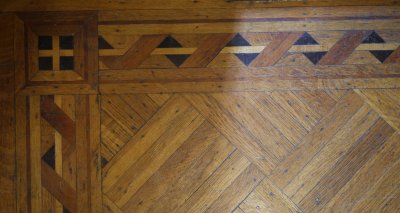

Beverly Square West circa 1899
40
![Click image for full-size image (2272 × 1752 pixels). Floor border: P040](images/P040.jpg)

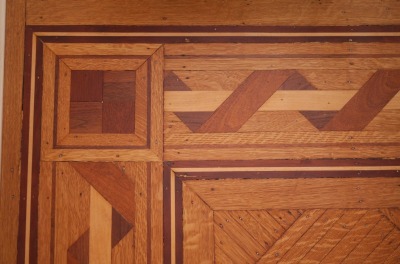

Prospect Park South 1915
In
spreadsheet enter in row: A - 2", C - walnut, E - 0, H/J - 13/16, I - 1/4. Corner has two walnut squares and two mahogany square. Gives a pattern border 4-1/4" wide and corner width of 8". Feature stripes beyond border and corner: cherry: 1/2", maple: 1/4", Total border is 10-1/2". Field wood is in 1" wide strips. The fingerblock parquet has at least 12 strips in the block.
6
![Click image for full-size image (2272 × 1552 pixels). Floor border: P006](images/P006.jpg)

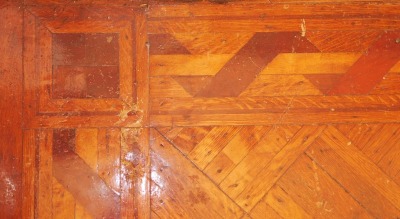

Bushwick 1897
We have four woods in this one. There are two different dark woods (probably cherry and mahogany). Also the grains are rotated in the square. Field is 8" square with 6 unequal strips (4 × 1-5/16" + 2 × 1-3/8" = 8")]. Note the parquet is diagonal to match the diagonals of the ribbon. This one might would look better if the center of the corner had a square of maple. Figuring out the measurements wasn't easy on this one. See
measured drawing. Also see
spreadsheet piece calculator. Those odd decimals are close to 1/12's.
Vertical Ribbon
A spreadsheet was created that calculates all of the below vertical ribbon borders, and standard corner. Dimensions of all pictured here are in spreadsheet.
1
![Click image for full-size image (795 × 522 pixels). Floor border: P001](images/P001.jpg)

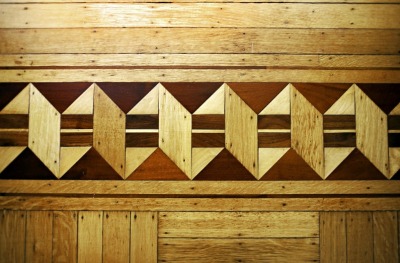

Source Unknown
Corner unknown. Four woods. Vertical Ribbon. Inner border is 7 1/2" wide, and the full border is 12". See
measured drawing. Enter into
spreadsheet 2.5 for width of parallelogram and 1.125 for rectangle width. I prefer the alternative wood selections over what is pictured here (dark/light flipped). This is also similar to
No. 2414 in the E.L. Roberts 1903 and 1908 catalogs.
137
![Click image for full-size image (2336 × 1656 pixels). Floor border: P137](images/P137.jpg)

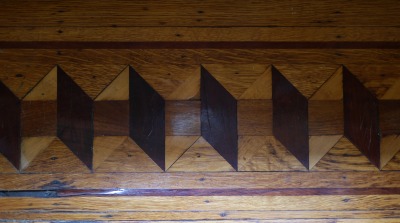

West Midwood 1908-11
Inner border is 7" wide. Enter into
spreadsheet 2.3333" (=7/3) for width of parallelogram and 0 for rectangle width. Oak strips are 1-1/8" with 1/2" mahogany. Inner field is 2" strips laid straight.
30
![Click image for full-size image (2304 × 1752 pixels). Floor border: P030](images/P030.jpg)

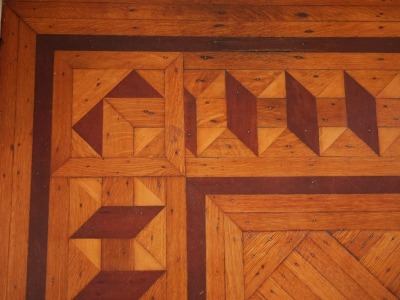

Fiske Terrace 1906
Inner border is 7" wide. Enter into
spreadsheet 2.3333" (=7/3) for width of parallelogram and 0 for rectangle width. Oak strips are 1-1/2" making a corner of 10". Walnut feature strips are 1-3/8", making a total border width of 12-3/4".
32
![Click image for full-size image (2080 × 1648 pixels). Floor border: P032](images/P032.jpg)

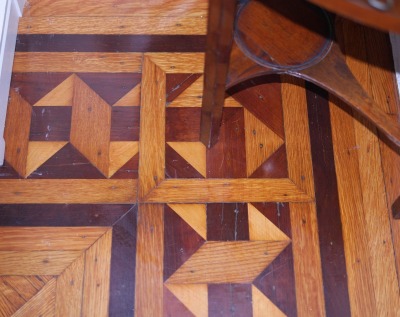

Fiske Terrace 1906
Vertical with solid pipe. Inner border is 7" wide. Enter into
spreadsheet 2.3333" (=7/3) for width of parallelogram and 0 for rectangle width. Outer oak and mahogany strips are 1-3/8" wide.
160
![Click image for full-size image (2336 × 1752 pixels). Floor border: P160](images/P160.jpg)
Ditmas Park 1903
An unusual corner for a pipe. An unusual coloring in the pipe and ribbon. The maple band is 1-1/4", the walnut surrounding is 5/8". Distance outside the pipe is 2-3/4", giving a border of 7-3/4". Inner field is 2" slats laid diagonally.
174
![Click image for full-size image (2336 × 1752 pixels). Floor border: P174](images/P174.jpg)
West Midwood 1906
Reversed coloring and a lovely pipe on this one. Oak pipe is 1", surrounded by 1/2" walnut. Pattern border width is 6-1/2+". Surrounding is 1/2" walnut and 1-3/4" oak. Inner field is 2" slats laid diagonally.
277
![Click image for full-size image (2304 × 1728 pixels). Floor border: P277](images/P277.jpg)
West Midwood circa 1910
192
![Click image for full-size image (2192 × 1696 pixels). Floor border: P192](images/P192.jpg)

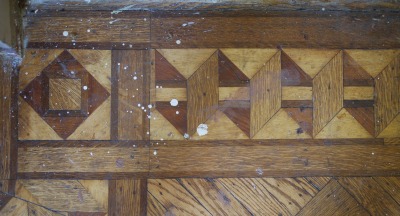

Prospect Lefferts Gardens Historic District 1906
This border was in two rooms. Pattern border is 6-1/2" wide. Pipe is 1/2" walnut and 1" maple. Surrounding is 1/2" walnut and 1-3/4" oak. Inner field is diagonal 12" fingerblock with 2" fingers.
214
![Click image for full-size image (2288 × 1712 pixels). Floor border: P214](images/P214.jpg)

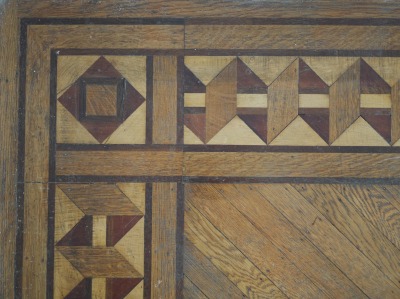

West Midwood Year?
Pattern border is 6-1/2" wide. Maple pipe is 1", surrounding is 1/2" walnut, giving a 2" wide pipe. Background triangles are 2-1/4" high. Surrounding is 1/2" mahogany and 1-3/4" oak. Inner field is 2" slats laid diagonally.
281
![Click image for full-size image (2320 × 1752 pixels). Floor border: P281](images/P281.jpg)

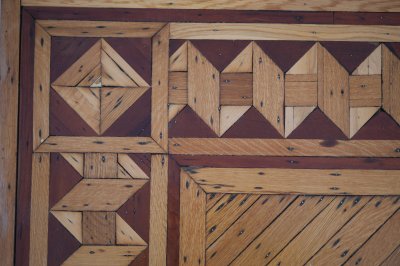

Ditmas Park Historic District 1901
274
![Click image for full-size image (2336 × 1752 pixels). Floor border: P274](images/P274.jpg)
West Midwood circa 1910
207
![Click image for full-size image (2336 × 1752 pixels). Floor border: P207](images/P207.jpg)

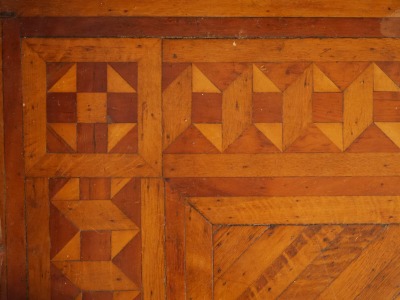

Bedford-Stuyvesant Year?
A new corner for me. The highlight of the day. It has a lovely color from the aging oil-based finish. Pipe and side space are 2-3/16" wide. Overall pattern is 6-1/2". Repeat is 4-3/8" with 2-3/16" each for ribbon and pipe. Surrounding is 1-3/4" oak, 1-3/8" mahogany, 2" oak. Inner field is diagonal 2" slats.
242
![Click image for full-size image (2304 × 1752 pixels). Floor border: P242](images/P242.jpg)

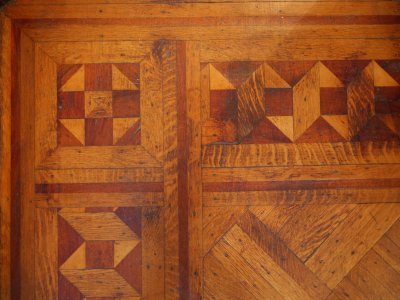

Beverly Square West circa 1899
The borders kind of overdo it by continuing on through.
303
![Click image for full-size image (2240 × 1640 pixels). Floor border: P303](images/P303.jpg)
Fiske Terrace: Midwood Park Historic District c1906-1910
Pipe and ribbon are 2-3/8" wide, making the border pattern 7-1/8" wide. The border is surrounded by 1-1/4" oak, 1-1/4" mahogany, and 2" oak. Inner field is 2" strips in 12" fingerblock.
Folded Ribbon
295
![Click image for full-size image (2336 × 1752 pixels). Floor border: P295](images/P295.jpg)

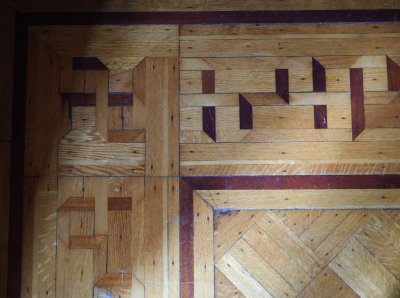

Stuyvesant Heights Historic District 1892
Oak is the background wood. The folded pattern is maple and mahogany. You have to look very carefully to tell which is the folded pattern and which is the field, and realize some repairs aren't correct.
S Ribbon
146
![Click image for full-size image (2224 × 1712 pixels). Floor border: P146](images/P146.jpg)
Park Slope Historic District 1891
Oak bands are 5/8" and mahogany bands are 1/2". Pattern border is 8-5/8" wide. Surrounding strip is 1-5/16". Inner field is 2" wide strips in 12" fingerblock.
272
![Click image for full-size image (2336 × 1752 pixels). Floor border: P272](images/P272.jpg)
Crown Heights South circa 1910
Two Ribbons
318
![Click image for full-size image (3456 × 2568 pixels). Floor border: P318](images/P318.jpg)

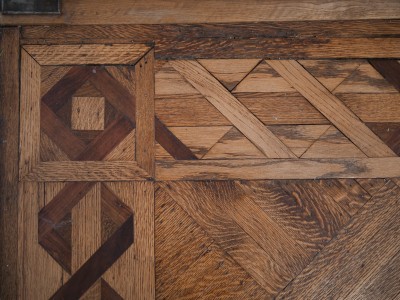

Park Slope Historic District 1909
Border pattern is 6-7/8" wide. The oak pipe is 2-1/8" wide. The folded ribbons are 1-1/2" wide and appear to be stained. Repeat is also 6-7/8". Elsewhere the border is surrounded by 1-1/2" oak, then 2" oak, then 1-1/2" dark wood. Inner field is 2" slats in 12" diagonal fingerblock.
