Two Folded Flattened Ribbons

Contents to Section Below:


Diagonal

Both of these have alternate folds and not helix folds.

136 Floor border: P136 West Midwood 1908-11
Inner squares and strip widths are 2-1/16" wide. Pattern border width is. Surrounding is 1/2" mahogany and 1" oak. Inner field is 2" strips diagonally.

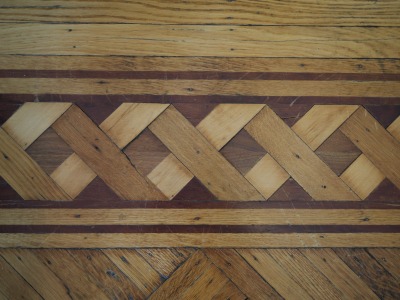

134 Floor border: P134 Central Park Slope 1901?
Inner squares and strip widths are 2-1/16" wide. Pattern border width is. Surrounding is 1/2" mahogany and 1" oak. Inner field is 1-1/2" strips in fingerblock.


Right Angles

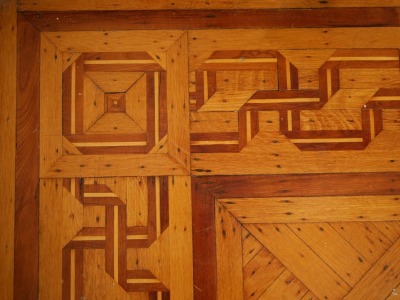

125 Floor border: P125 Crown Heights North Historic District 1890
The ribbon is 1-3/8" wide, giving a pattern width of 6-7/8". The ribbon's mahogany is 9/16" and the maple is 1/4". The oak rectanular block is 4-1/4" long, giving a repeat of 7". Surrounding stripes are 1-1/2" oak, 1-1/2" mahogany and 1-3/4" oak. Inner field is 2" slats in a fingerblock.

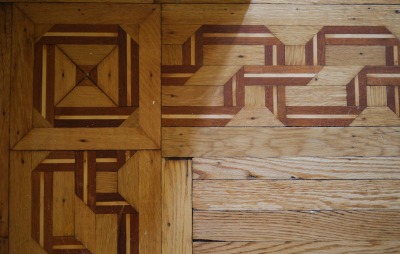

131 Floor border: P131 Central Park Slope 1901?
They botched the slat width in the border. Dimensions are the same as #125.
